Ducky14s
| One-day sailing | Sport | Travel |
|---|---|---|
| ★★★★★ | ★★★★★ | ★★★★★ |

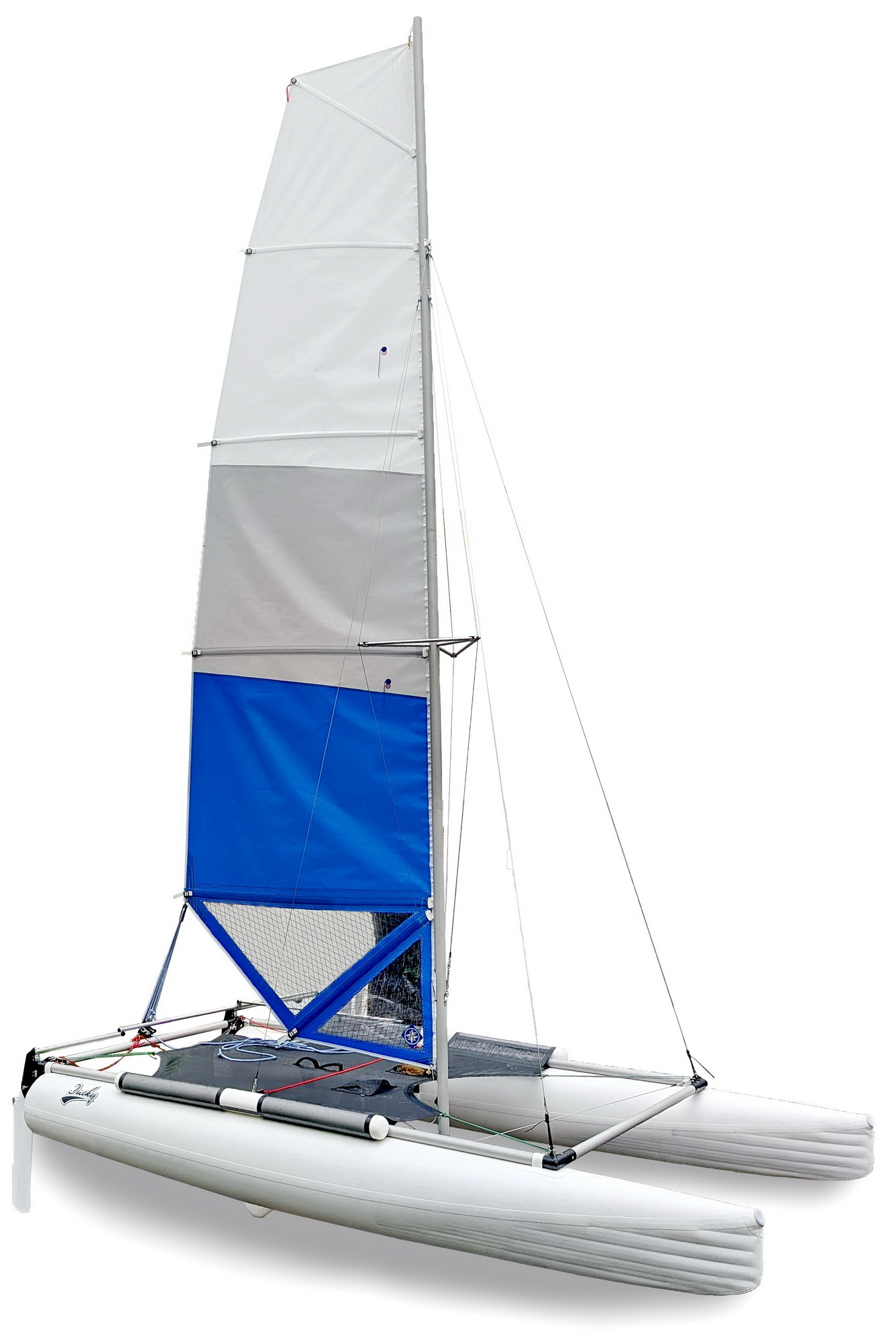

Ducky14s is a purebred sports catamaran that successfully combines the best qualities of inflatable and rigid-hull catamarans. The letter ‘S’ in the name of this model (short for ‘Sport’) hints at its true character. This model is primarily designed for lovers of speed and sports sailing.
Innovative and unique
The Ducky14s has a unique frame design that is unrivalled. It provides the necessary rigidity to convert wind energy into speed as efficiently as possible.
Advanced hulls design
Ducky14s hulls have an extremely efficient shape. They cannot be compared to conventional inflatable banana-shaped hulls or hulls that only imitate the shape of rigid-hulled counterparts. They should be compared to real rigid-shell counterparts, whose sharp bow allows them to cut through waves with minimal resistance. At the same time, they are significantly lighter.
Lightweight, fast and dynamic
The feel of the Ducky14s is similar to that of a rigid-hulls catamaran, and the catamaran’s low weight provides even better dynamics.
Full control and manoeuvrability
The large sail easily lifts the catamaran onto one hull. At the same time, two rudders provide full control even at large angles of heel, unlike catamarans that have only one rudder and can easily lose control.
Ideal for solo sailing
Conceptually, the Ducky14s is similar to Class A rigid-hull catamarans. The absence of a jib significantly simplifies the handling of the catamaran when sailing solo. At the same time, the mainsail area can range from the standard 9.6 square metres to an incredible 11.5 square metres! This is a real challenge for lovers of speed and extreme sailing.
| Seaworthiness | Performance | Solo sailing | Two people sailing or more |
|---|---|---|---|
| ★★★★★ | ★★★★★ | ★★★★★ | ★★★★★ |
| Length, m | 4.4 |
| Width, m | 2.2 |
| Height, m | 7.0 |
| Length / Width of trampoline, m | 2.0 / 2.0 |
| Diameter of floats, m | 0.45 |
| Main sail, sq.m | 9.6 |
| Carrying capacity, kg | 250 |
| Crew, pers. | 1-2 |
| Weight, kg | 62 |
| Dimensions in packed condition, m | |
| Pack №1 | 1.80 х 0.25 х 0.25 |
| Pack №2 | 1.80 х 0.25 х 0.25 |
| Pack №3 | 0.8 х 0.4 х 0.3 |
| Sail | 1.95 х 0.22 х 0.22 |
| Time of Assembly / Disassembly, min | 30 / 20 |
| Sail material | Dacron / Mylar |
| Boat design category (Directive 94/25/EC, 2003/44/EC и 2013/53/EU) | D |
FRAME AND TRAMPOLINE
- The unique frame design has a mast that stands on the cables! The upper and lower cables form two closed pyramids, which provide maximum rigidity and prevent twisting
- The minimum number of frame elements ensures low weight and quick assembly
- The frame material is lightweight, durable and corrosion resistant aluminum alloy
- All aluminum parts are anodized or powder coated for additional corrosion protection in seawater
- The Trampoline has a unique design and is stretched using ropes and inflatable rollers
- Inflatable trampoline rollers are comfortable for sitting and for catamaran tilt
- Trampoline material is durable PVC net that allows water to pass through and prevents the puddles formation

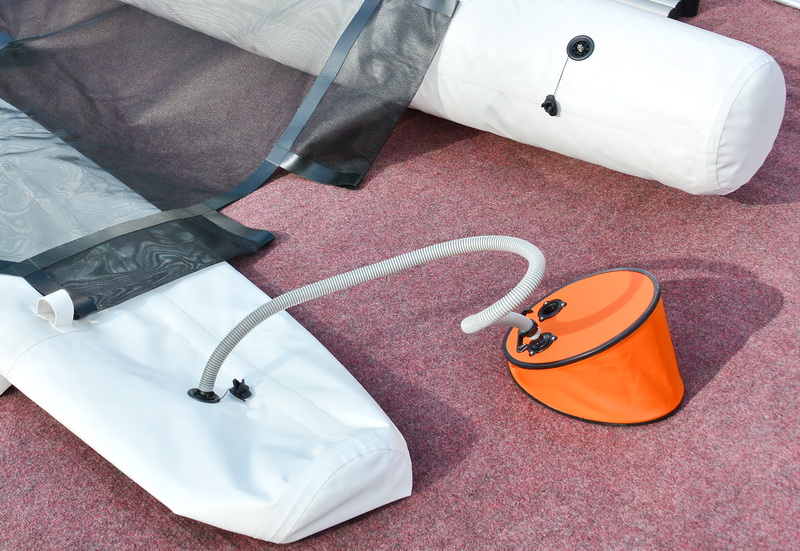

FLOATS
- Highly efficient float shape provides minimum resistance and maximum speed
- Sharp stem makes wave travel smooth with minimal spray
- Each float has two sealed sections that provide added safety
- Fast and convenient fastening to the frame with straps
- The floats material is a durable boat PVC fabric with 1000 g/sq.m weighing
CENTERBOARD
- Centrally located
- Necessary area, good elongation and profile ensure effective movement of the catamaran against the wind
- It has an automatic system of protection against damage when running aground or into obstacle
- Regulated degree of immersion into water of the centerboard makes it possible to move against the wind even in shallow water
- Сenterboard material is glass composite
RUDDERS
- Two rudders provide control in all running modes
- They have an automatic system of protection against damage when running aground or an obstacle
- Tiller extension allows to more effectively place your weight for balancing of catamaran heeling
- Rudder blades material is glass composite
SAIL
- It is mainsail
- High elongation, shape and profile ensure high efficiency
- There is no boom, which is important for the safety
- There is a main traveler for an effective sail setting
- Sail material is Dacron or Mylar
MAST
- Mast has a spreader, which greatly increases its strength
- It is swivel, held in working position by cables and shafts
- Consists of four sections
- The mast float provides protection against a complete overturn
ACCESSORIES
- Catamarans are equipped with blocks, sheets, stoppers and other parts from leading manufacturers
MAST FLOAT
The mast float is an inflatable tank that prevents the catamaran from turning the mast down. The float will keep catamaran in “on a side” position and will facilitate the righting of the catamaran to an even keel, in case of capsizing. It will not allow the mast to sink into bottom and prevent possible damage. The mast float is streamlined. If necessary, it is easily mounted and dismantled without the use of tools. Fixators included.
PARKING COVER
Parking cover protects the catamaran from the sun, rain, dust and dirt.
SAIL NUMBER
Number is made from a self-adhesive dacron. The standard symbol height is 300 mm. Drawing of individual logo is also possible.
