Ducky14s

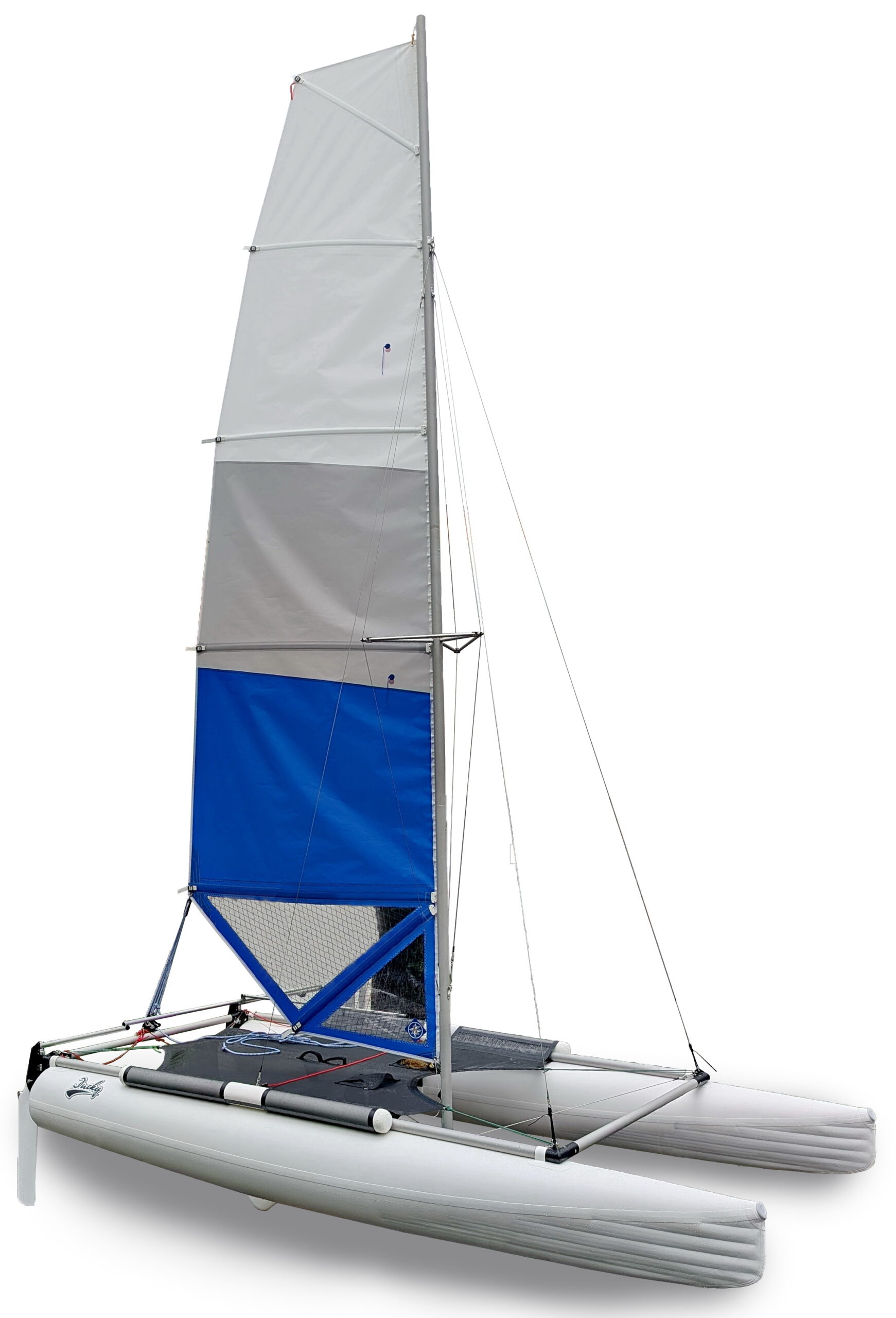

Inflatable sail catamaran Ducky14s

Ducky14s is an uncompromising racing catamaran. This model is designed for those whose priority is speed and thrill. The prefix “s” in the name of this model is an abbreviation of the word “sport”, emphasizes the sporty character of this model.

As a result of a long search and experiments, it was possible to create a unique design that combines the best qualities of inflatable and solid hull catamarans. The feelings of operating the Ducky14s is similar to the ones of runing a solid hull catamaran. But, due to the low weight of the catamaran itself, even better dynamics are provided. A large effective sail and a high-tech form of floats will give high speed and a sense of flying, and two rudders will provide sharp controllability and control in all riding modes.

Of course, on Ducky14s in the relaxation mode you could ride your friends, but to unleash the full potential of this sport catamaran and really enjoy it, you will be able only alone.

The laconic design of this catamaran allows you to assemble it without tools in 30 minutes!

TECHNICAL DATA
Length, m 4.4
Width, m 2.2
Height, m 7.0
Length / Width of trampoline, m 2.0 / 2.2
Diameter of floats, m 0.45
Main sail, sq.m 9
Carrying capacity, kg 250
Crew, pers. 1-2
Weight, kg 62
Dimensions in packed condition, m
Pack №1 1.80 х 0.25 х 0.25
Pack №2 1.80 х 0.25 х 0.25
Pack №3 0.8 х 0.4 х 0.3
Sail 1.95 х 0.22 х 0.22
Time of Assembly / Disassembly, min 30 / 20
Sail material Dacron / Mylar
Boat design category (Directive 94/25/EC, 2003/44/EC и 2013/53/EU) D

DESIGN
FRAME AND TRAMPOLINE
  • The unique frame design has a mast that stands on the cables! The upper and lower cables form two closed pyramids, which provide maximum rigidity and prevent twisting
  • The minimum number of frame elements ensures low weight and quick assembly
  • The frame material is lightweight, durable and corrosion resistant aluminum alloy
  • All aluminum parts are anodized or powder coated for additional corrosion protection in seawater
  • The Trampoline has a unique design and is stretched using ropes and inflatable rollers
  • Inflatable trampoline rollers are comfortable for sitting and for catamaran tilt
  • Trampoline material is durable PVC net that allows water to pass through and prevents the puddles formation
FLOATS
  • Highly efficient float shape provides minimum resistance and maximum speed
  • Sharp stem makes wave travel smooth with minimal spray
  • Each float has two sealed sections that provide added safety
  • Fast and convenient fastening to the frame with straps
  • The floats material is a durable boat PVC fabric with 1000 g/sq.m weighing
CENTERBOARD
  • Centrally located
  • Necessary area, good elongation and profile ensure effective movement of the catamaran against the wind
  • It has an automatic system of protection against damage when running aground or into obstacle
  • Regulated degree of immersion into water of the centerboard makes it possible to move against the wind even in shallow water
  • Сenterboard material is glass composite
RUDDERS
  • Two rudders provide control in all running modes
  • They have an automatic system of protection against damage when running aground or an obstacle
  • Tiller extension allows to more effectively place your weight for balancing of catamaran heeling
  • Rudder blades material is glass composite
SAIL
  • It is mainsail
  • High elongation, shape and profile ensure high efficiency
  • There is no boom, which is important for the safety
  • There is a main traveler for an effective sail setting
  • Sail material is Dacron or Mylar
MAST
  • Mast has a spreader, which greatly increases its strength
  • It is swivel, held in working position by cables and shafts
  • Consists of four sections
  • The mast float provides protection against a complete overturn
ACCESSORIES
  • Catamarans are equipped with blocks, sheets, stoppers and other parts from leading manufacturers

ADDITIONAL OPTIONS
MAST FLOAT

The mast float is an inflatable tank that prevents the catamaran from turning the mast down. The float will keep catamaran in “on a side” position and will facilitate the righting of the catamaran to an even keel, in case of capsizing. It will not allow the mast to sink into bottom and prevent possible damage. The mast float is streamlined. If necessary, it is easily mounted and dismantled without the use of tools. Fixators included.

PARKING COVER

Parking cover protects the catamaran from the sun, rain, dust and dirt.

SAIL NUMBER

Number is made from a self-adhesive dacron. The standard symbol height is 300 mm. The cost of one character without sticking is 2 euros, with sticking - 3 euros. Drawing of individual logo is also possible.
